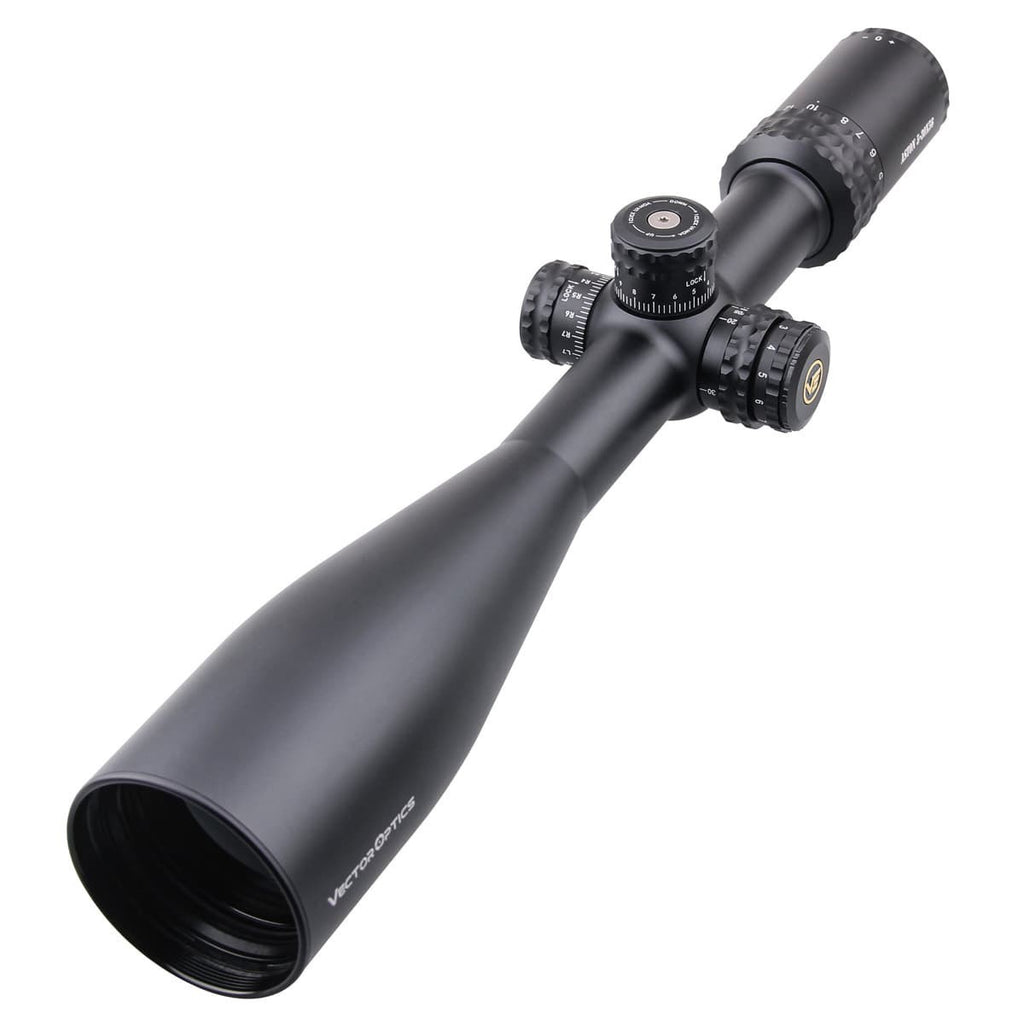

Aston 5-30x56SFP

Product Description

Magnification: 5-30x

Objective Lens Dia.: 56mm

Ocular Lens Dia.: 36mm (1.4 inch)

Ocular Lens Length: 58mm (2.1 inch)

Exit Pupil: 11.2mm-1.87mm

Optics Coating: Fully-multi coat diamond clear

Field of View: 19.93-3.3 Feet @ 100 yards

Resolution: 5.5″

Eye Relief: 124-86mm (4.9-3.4 inch)

Length: 400mm (15.7 inch)

Weight: 835g (29.5 ounce)

Tube Dia.: 30mm Monotube

Click Value: 1/4 MOA

Elevation Range: >50MOA

Windage Range: >50MOA

Parallax Setting: 100 yards

Side Focus: 20 Yds to infinite

Reticle: Etched glass VPA-A

Illumination: 11 gear Red

Battery: CR2032

Distance between objective lens part and middle turret: 55mm (2.1 inch)

Length of middle turret part: 38mm (1.5 inch)

Distance between middle turret part to power ring: 55mm (2.1 inch)

MOA reticle etched glass

Shock tested to 750g, water proof at 1m

Fully nitrogen purged to eliminate any fogging of the lenses internally

Turret lock system

High quality 6061 T6 aircraft grade aluminum

Focus mark: 20, 30, 40, 50,100, 150, 300, 600 and infinite

Diopter compensation from fast-focus eyepiece (+2 to -2)

Including items: 30mm picatinny high ring (default) or weaver or dovetail mount, lens caps and cleaning cloth etc.
